Suction Unit

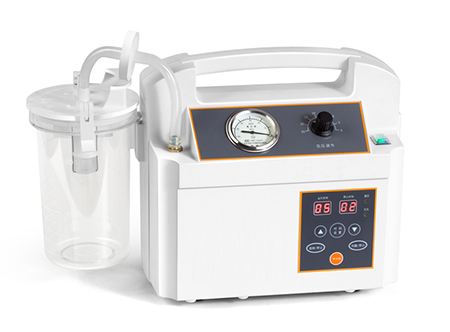

Wound Continuous Drainage Suction Unit is a medium vacuum/high flow portable suction unit designed with integrated circuit and sensing control technology. It applies to vacuum-assisted closure and sustains continuous vacuum for drainage or clean-up the surface wound and ulcer wound with the special dress. It is also suitable for continuous drainage post operation.
1. Features of Wound Continuous Drainage Suction Unit model Vts32 when used for drainage or clean-up the surface wound cooperated with special dress:
2. Bedside drainage with noiseless;
3. There are two modes of operation, Continuous and Intermittent, Intermittent mode working time can be set;
4. High-life and long-time continuous work without fault.
5. Vacuum can be regulated according to requirements.
6. High-precision pressure sensor makes the vacuum value constant and reliable;
7. Overflow protection device can protect the pump against pollution by the liquid.
8. Relief valve is used to reduce vacuum value when it is adjusted from high to low as well as the vacuum value that rises suddenly in the tube.
9. It works with Low-vacuum light and High-vacuum sound-light alarm.

1. Max. vacuum: ≥32KPa (240mmHg)
2. Adjustable vacuum range: 2.5 kPa~Max. vacuum
3. Flow rate: ≥25 L/min
4. Noise: ≤50dB(A)
5. Operation mode:Continuous and Intermittent
6. Intermittent time control: 5 min ON/2 min Stop(default) or set from 1~15 min
7. Power supply: ~220V,50Hz
8. Input: 100VA
9. Storage bottle: 1000ml(PC)
10. G.W./N.W.:7.4kg/6.4kg
11. Dimension: 550mm×264mm×380mm
