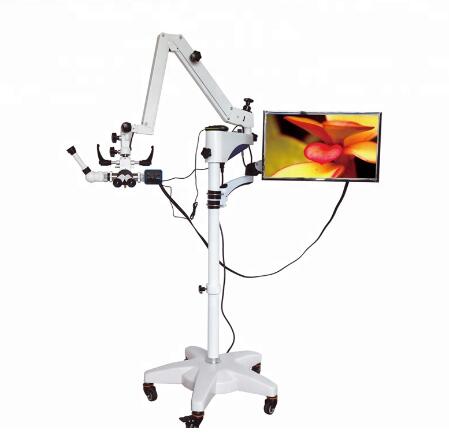

YSX Series Operation Microscopes using LED light source for coaxial illumination, have different working distance and magnification. They are featured for flexible handling and easy operation. They can be sued for micro-operation in ear-nose-throat, dental, ophthalmology, gynecology and surgery.

Observation angle: Straight
Magnification of binocular: 6X
Interpupillary distance: 50mm-80mm
Diopter: ±5D
Focal length of objective: F=200mm and F=300mm two objectives
Magnification changer: 3-step: 0.6X, 1X, 1.6X
Total magnification: 3X, 5X, 8X, 4.7X, 7.5X, 12X
Linear field: 60.8mm, 37.9mm, 23.6mm, 40.6mm, 25.3mm, 15.8mm
Fine focusing distance: 10mm
Illumination: Coaxial illumination with 10W LED lamp light source, brightness adjustable, illumination>30000lx
Filter: Build-in green and yellow filters
With beamsplitter and video camera adapter, C-mount 1/3 inch video camera attachable
Balancing arm: 2-part arm with universal joints, counterweight adjustable and can be locked
Floor stand: 2-part column fitted on the five-star base with casters
Power supply: AC100V-AC240V
